Folding neck trailer can meet various transportation needs. Such as construction machinery, heavy machinery, etc. Application of folding neck trailer in construction and logistics is getting wider and wider. Folding neck lowboy for sale provides powerful support in high intensity work.
Operation convenience:
The folding system is simple and user friendly. The utility model employs hydraulic system and Gooseneck elevating cylinder. It is easy to operate and high efficiency. The driver is good at performing various operations under simple control. Training time of driver will be shorter.
The folding design also optimizes the centre of gravity of folding neck lowboy for sale. When the gooseneck is folded, the centre of gravity is naturally lowered. It contributes to better handling when driving at high speed or turning. It reduces the risk of rollover and improves the folding neck trailer's stability. Such a low centre of gravity is especially beneficial for shipping higher goods. This makes the driver more confident in his driving and makes sure he is safe.

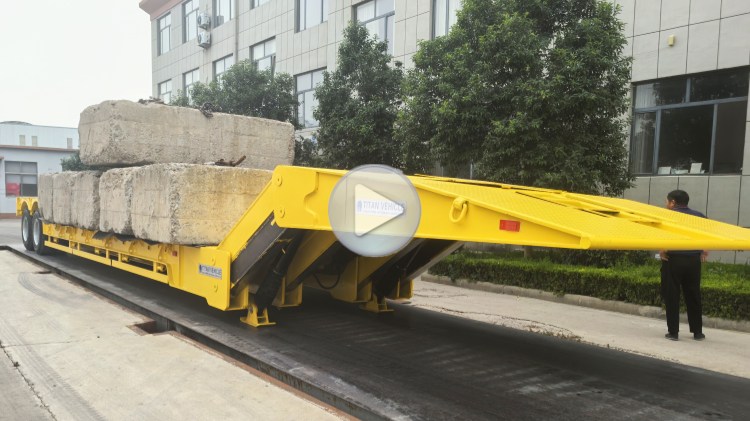

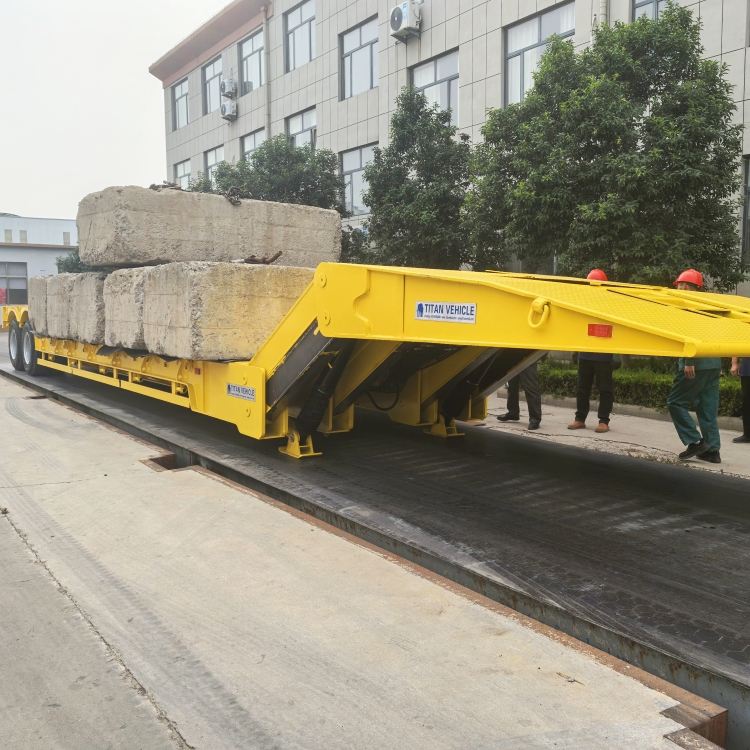

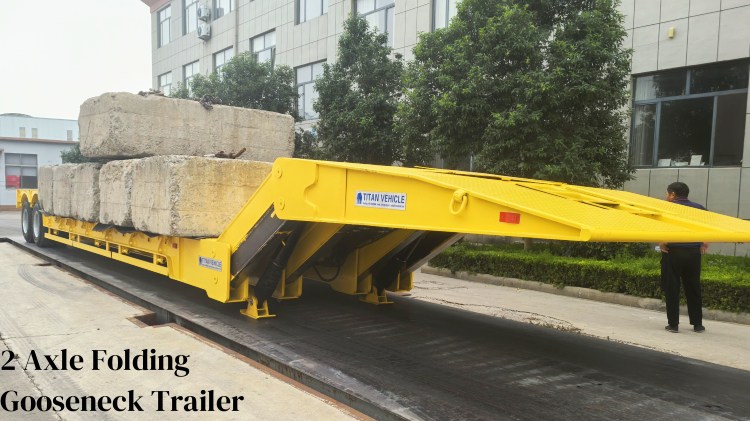

50 Tons Folding Neck Lowboy Trailer for Sale in Panama
50 Tons Folding Neck Lowboy Trailer for Sale in Panama
50 Tons Folding Neck Lowboy Trailer for Sale in Panama
50 Tons Folding Neck Lowboy Trailer for Sale in Panama
50 Tons Folding Neck Lowboy Trailer for Sale in Panama

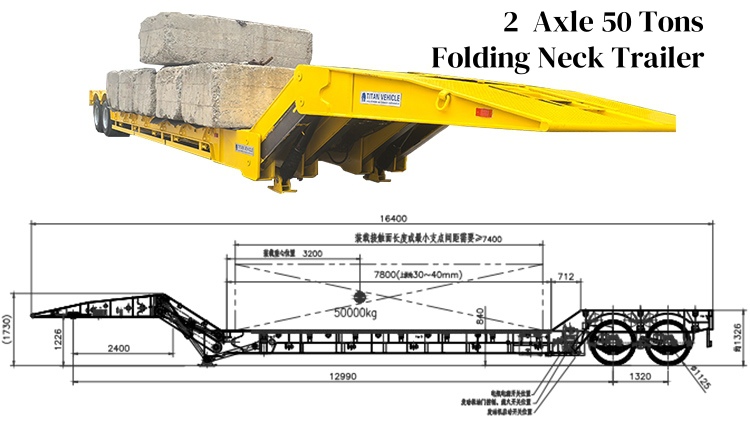

Dimension: 16400mm x 2900+(250*2)mm x 730mm
Loading capacity: 50 TONS

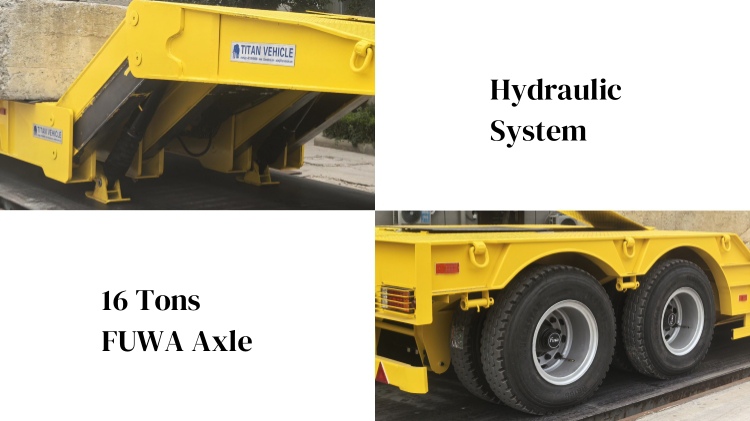

Gooseneck: hydraulic folding gooseneck.
Side hook for chain or belt
Checkered plate with 20 mm squre bar on ramps
Axle: 2 Axle , 16 Tons FUWA Brand
Tire: 8 units, 12R22.5
Suspension: Mechanical suspension
Kingpin: 50 #JOST
Ramp: Hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. Uniqueness of folding design
The flexibility of the folding gooseneck makes it easier to operate. The folding gooseneck can be folded or spread horizontally when required. This makes the loading and unloading process more efficient. It is easy for the driver to lower folding neck lowboy for sale. This connects the platform to the ground. The utility model is convenient for the loading and unloading of machinery. Quick loading and unloading of the folding system is significant. It cuts down on operation time of folding neck lowboy for sale. In addition, the transport volume per unit of time is enhanced.
2. Carrying capacity
2.1 High load capacity
The folding neck lowboy for sale owns strong structure support. It's easy to withstand a load capacity of up to 50 tons. This makes it ideal for the transportation of heavy equipments. Folding neck trailer is easy to deal with the heavy freight transport work. Such as building and mining. In such cases, the load capacity of the folding neck trailer is outstanding. The folding neck trailer owns demonstrated excellent performance in this respect.
2.2 Adapt to various types of cargo
Folding neck lowboy for sale is designed to carry various types of cargo. For instance, building machines, steel and heavy containers. This versatility makes it possible to perform well in a variety of transport requirements. Large excavators and containers can also be loaded. Folding neck lowboy for sale offers more flexibility and convenience for customers.
3 Security configuration
3.1 Advanced braking system
The folding neck trailer is fitted with an excellent braking system to ensure safety. Including locks and rope tightening devices. These facilities are effective to prevent the goods from slipping and tipping. On steep slopes, the safety configuration provides additional protection for the driver.

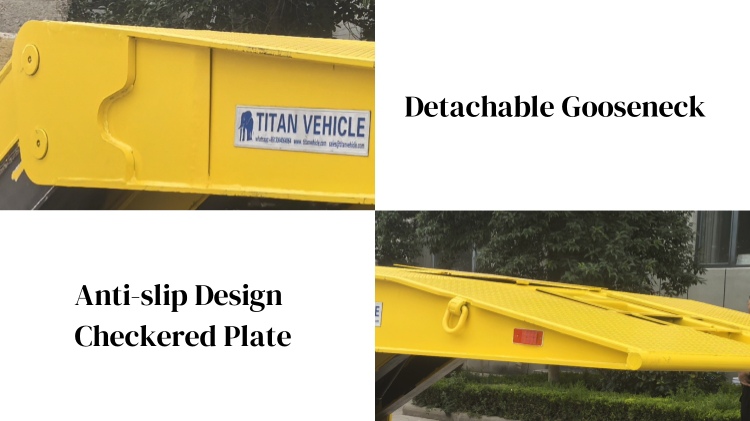

3.2 The loading ramp is an anti-slip pattern plate
Folding neck lowboy for sale ensures safety in loading and unloading. The folding neck lowboy for sale is fitted with an anti-slip type loading ramp. This ramp is designed to decrease the risk of a heavy load slipping. The folding neck lowboy for sale increases your efficiency of work. Anti-slip design also offers more security to the operator.
4. The Multifunctional Application of the Device
4.1 Adapt to different types of goods
Flexible design and adjustable ramp are applicable to all kinds of sizes and shapes. It enables it to show superior performance in complex environments.
