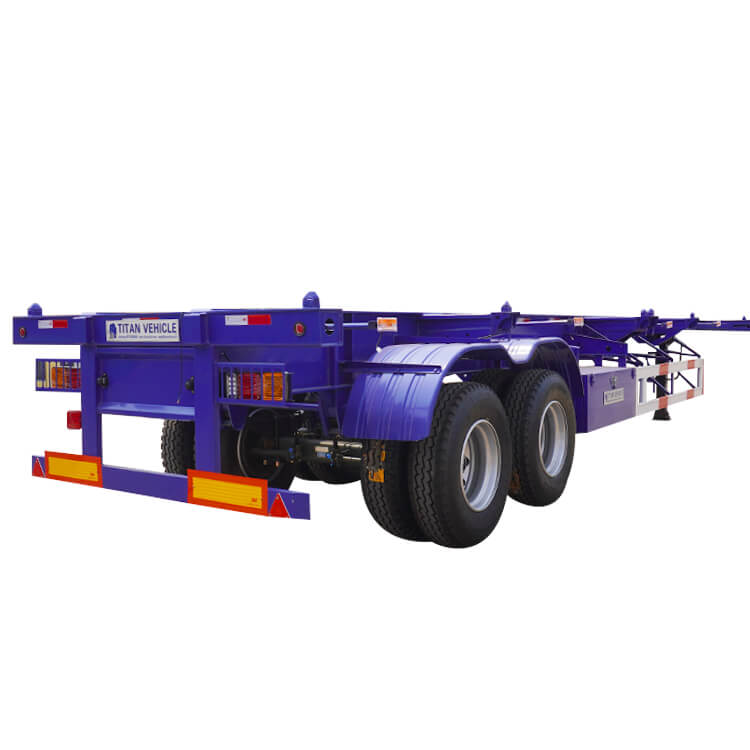

This 2 axle container chassis trailer for sale adopts a skeleton structure design, that is, a frame structure composed of main beams and a series of auxiliary beams welded to support and fix the container. This structure of chassis 40ft for sale can provide enough stable support and bending resistance to ensure the load capacity and durability of the semi-trailer.
The frame of this container chassis trailer for sale is made of high-strength steel, which has high load-bearing capacity and damage resistance. The frame structure of the container and chassis has been optimized to improve the traction and handling stability of the vehicle, while reducing the weight of the vehicle body and increasing the load capacity.

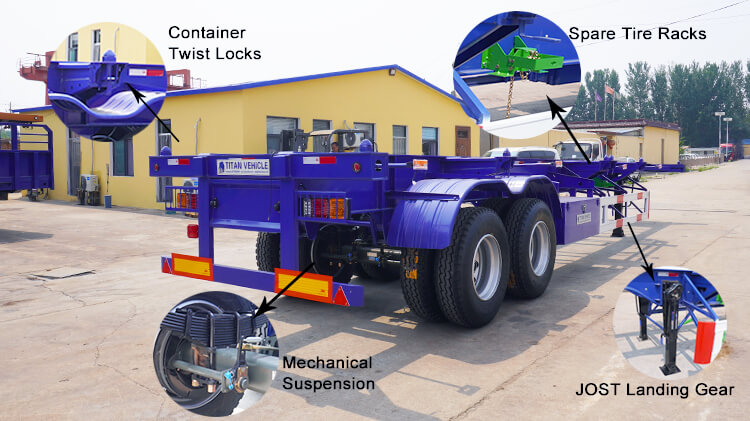

This 40 ft chassis for sale is usually equipped with Chinese standard 28 tons or JOST brand landing gear to support the stability of the vehicle during loading and unloading. The outriggers adopt a retractable design and can be adjusted according to the height of the container to facilitate cargo loading and unloading operations.
This 40 ft chassis for sale box is generally secured by standard container twist lock devices, generally equipped with 12 twist locks. These devices of the container and chassis can firmly fix the container on the frame, preventing sliding or tipping during transportation.
Model: 2 Axle 40 Ft Container Chassis Trailer for Sale in Panama
Dimension(mm): 12500x2500x1520mm
Loading capacity(ton): ≤60T
Axles: 3 axle
Tire: 12 units, 12R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
If you are interested in this 2 axle 40ft container chassis trailer, welcome to leave your message!
We will provide more details, quotations, catalogs, drawings, and videos for you!
